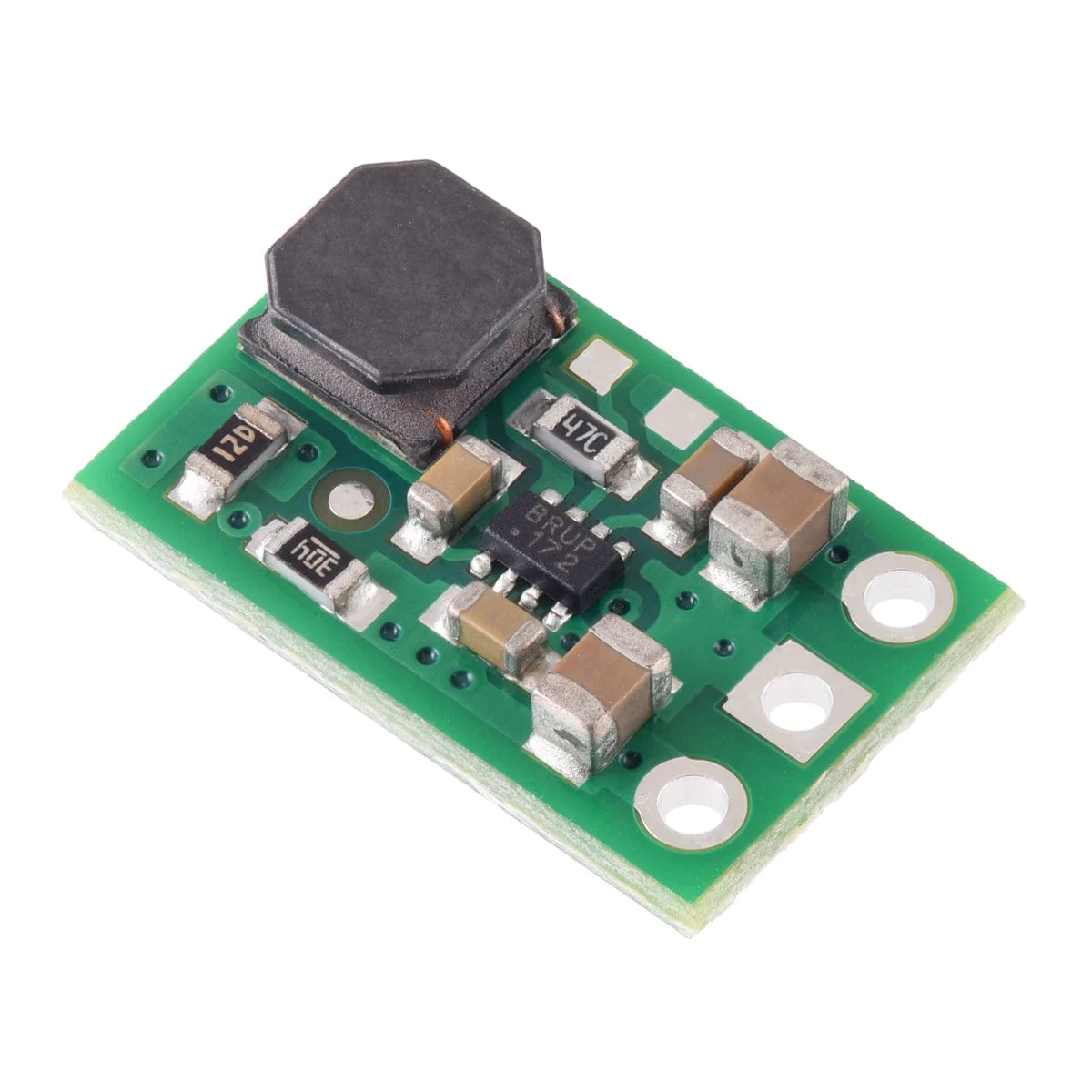

This compact switching step-up (or boost) voltage regulator efficiently generates 3.3V from input voltages as low as 1.3V and handles continuous input currents up to around 1.6A. (Note: minimum start-up voltage is 2.7V, but it operates down to 1.3V after that.)

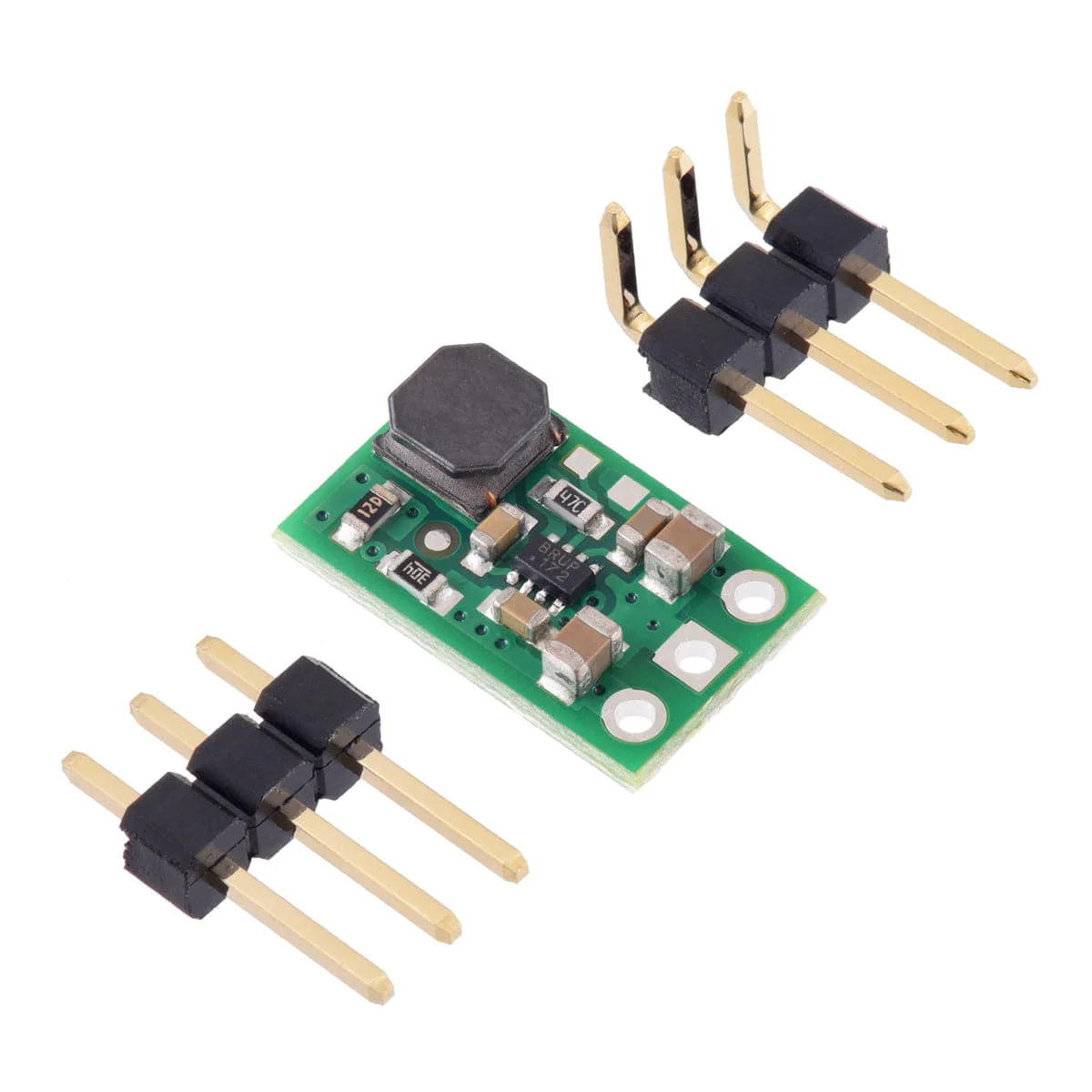

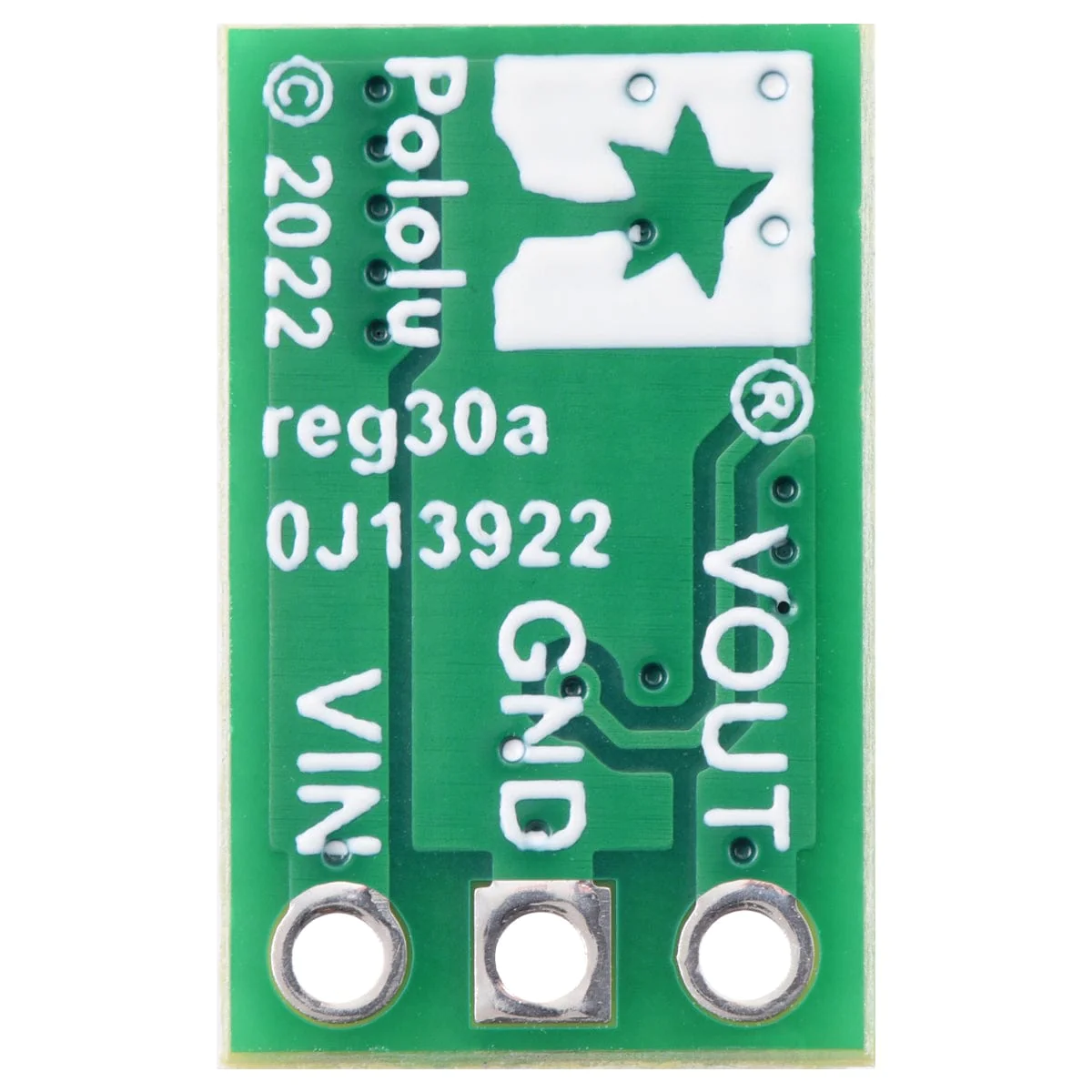

The pins have a 0.1″ spacing.
The U3V16Fx family of boost (step-up) voltage regulators are switching regulators (also called switched-mode power supplies (SMPS) or DC-to-DC converters) and have a typical efficiency between 85% to 95%.
The regulators actively limit the instantaneous input currents to 2A when boosting, and input currents up to around 1.6A can typically be maintained for many minutes without triggering thermal shutdown, though the actual performance depends on the input and output voltages as well as external factors such as ambient temperature and airflow. For boost regulators, the output current equals the input current times the efficiency divided by the boost ratio of VOUT to VIN, so the more you are boosting, the lower the maximum output current will be (see the maximum continuous output current section below for performance graphs).
These regulators feature a variety of built-in protections, including cycle-by-cycle input current limiting, under-voltage lockout, and over-temperature shutdown.
Warning: This boost regulator uses the typical topology that connects the input to the output through an inductor and diode, with nothing to completely break that current path. Therefore, the input voltage will go through to the output even when the regulator is disabled, and exposure to short circuits or other excessive loads will damage the regulator. This regulator also does not have protection against reverse voltage.
During normal operation, this product can get hot enough to burn you. Take care when handling this product or other components connected to it.
Features
- Output voltage: 3.3V with 4% accuracy
- Input voltage: 1.3V to 16V (Note: minimum start-up voltage is 2.7V)
- Typical efficiency of 85% to 95%, depending on input voltage, output voltage, and load (see the efficiency graph below)
- Switching frequency: ~1.2 MHz under heavy loads
- Power-save mode that increases light load efficiency by reducing switching frequency
- Typical no-load quiescent currents under 1 mA (see the quiescent current graph below)
- 2A switch current limit
- Typical continuous input currents up to around 1.6A (see the maximum continuous output current graph below)
- Tolerates input voltage above output set voltage (output will track input, see the connections section for details)
- Integrated protections:
- Over-temperature shutdown
- Soft-start feature limits inrush current and gradually ramps output voltage
- Under-voltage lockout

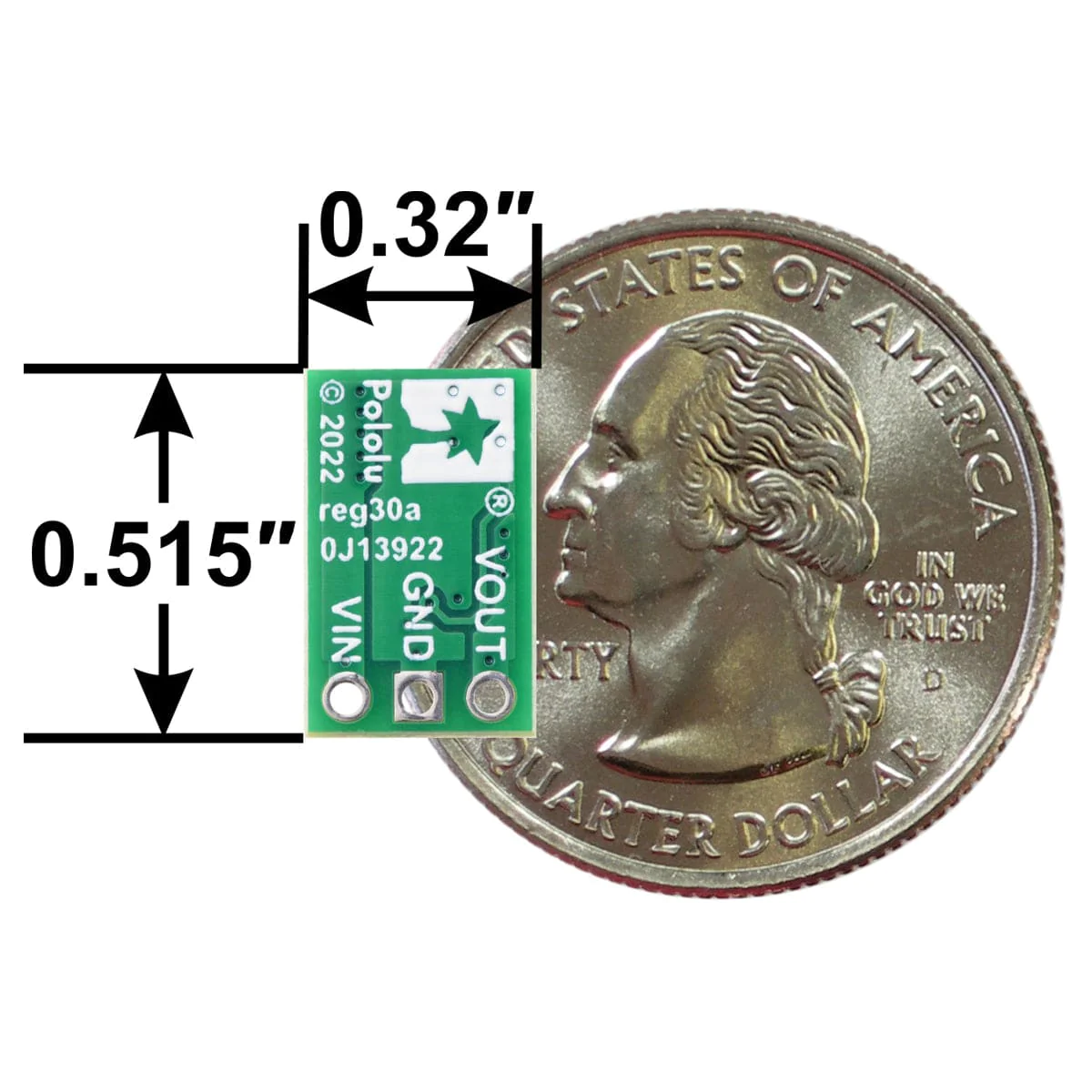

- Compact size: 13.1 × 8.1 × 3mm
- Weight: 0.4g
Specifications
Minimum operating voltage | 1.3V |
Maximum operating voltage | 16V |
Maximum input current | 2A |
Output voltage | 3.3V |
Reverse voltage protection? | N |
Size | 0.32″ × 0.515″ × 0.1″ |
Weight | 0.4g |
