Lilienthal 40 Model Rocket Glider Plane Klima

K4201
£6430
Stock: 2 item(s)
Free UK shipping when you spend over £150
Free UK shipping over £150
Regular shipping from £4.99 - £7.99
Full shipping terms
Other items or accessories you may like
  • Similar skill rockets
  • More by this manufacturer
  • Rocket motors
  • Pads & controllers
  • Wadding & igniters
  • Motor adapters

Description

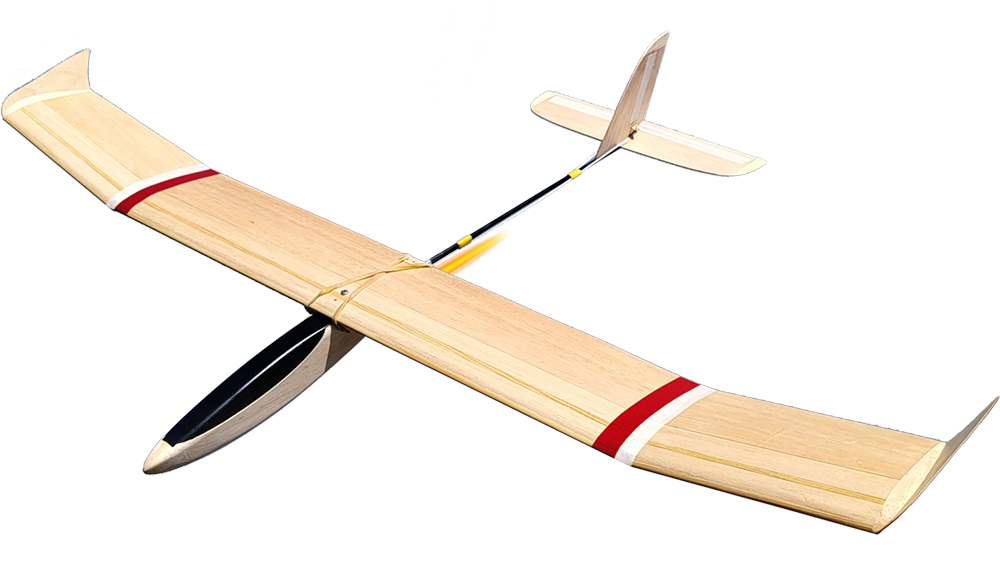

Lilienthal 40 Model Rocket Glider Plane

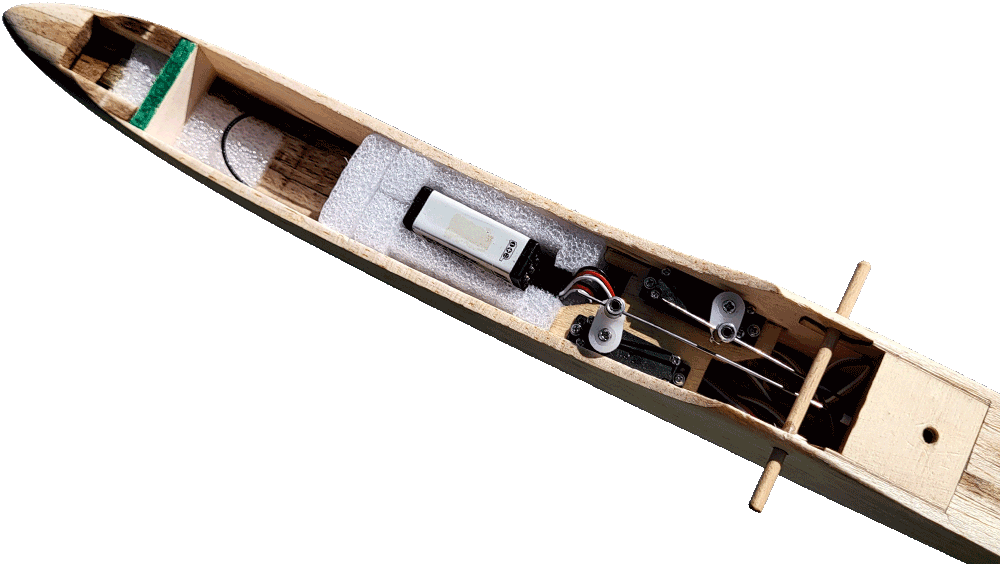

The Lilienthal 40 RC is an easy-to-build RC-controlled glider model. The hull offers enough
Space for 2 micro servos, receiver and battery.

In the special rocket glider version  available exclusively from us, one of our  rocket motors gives this
Gliders have a  very special extra kick:  after  igniting the engine, the glider quickly rises into the sky.
After a few seconds  the  rocket motor  burns out and then you fly the model
as a pure glider.
The model is specially prepared for rocket flight (but can also be used for all other types of flight

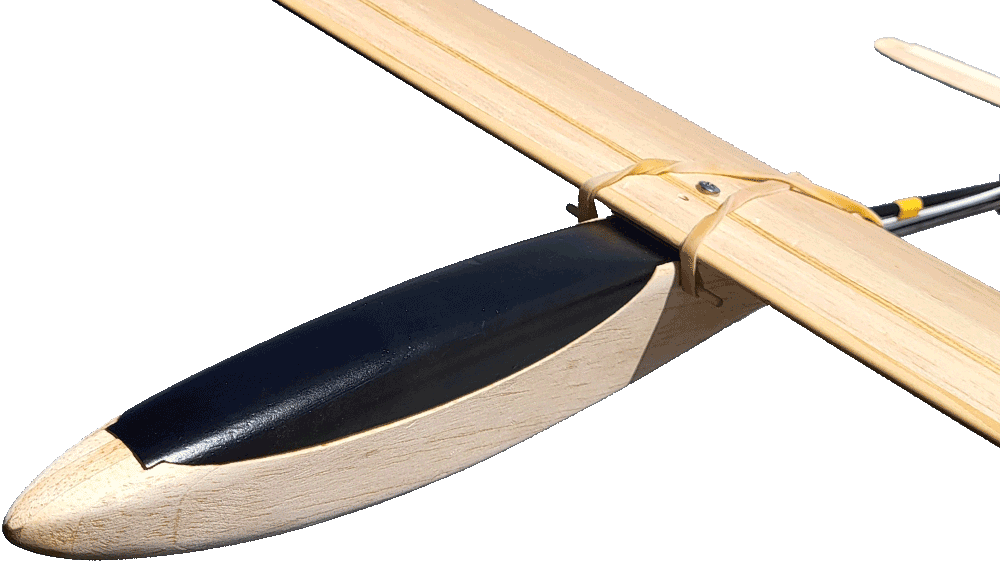

used): The wing attachment is reinforced, the space for attaching the rocket
The motor mount is lasered in broken lines, and of course a rocket motor mount is also included.

Three different rocket motors can be used: C2-P, D3-P or D9-P.
All of these engines are ignited with a fuse, which lasts 5-6 seconds
Rocket engine ignition burns. During this time when the fuse is burning, you start the model
in the throw from the hand.

The C2-P engine with less strong thrust is particularly suitable for entry-level use. Provides more thrust
then the C3-P engine. Particularly experienced pilots can also use the powerful D9-P engine
use, which allows an almost vertical climb into the sky.

The model is built relatively quickly. All parts are precisely laser cut. The nose bar of the model
is already milled into shape - no grinding work is necessary here. The wing is constructed with pre-formed balsa parts with the help of support ribs. The ears of the

Surfaces are already built with the appropriate V shape, which no longer needs to be laboriously sanded
must become.

Detailed and youth-friendly building instructions in 3D style are included with the kit and will also help
rather inexperienced model builder.

  Not included:

- RC components (micro servos, receiver, battery)
- Adhesives, varnishes, propellants

Technical data:
Wingspan: 1190mm
Length 830mm
Empty weight: 190-220 g



Note: Model rocketry is recommended for ages 10 and up with adult supervision for those under 12. Unless otherwise specified, all models require assembly. Tools, construction and finishing supplies sold separately. In order to launch, a launch system, model rocket engines, igniters and recovery wadding are required - sold separately-unless otherwise specified.

Product specifications

Age recommendation
10+ with adult supervision or 12+
Altitude on max suggested motor
N/A
Battery type
Battery not included
Brand
Klima
Condition
new
Construction skill
Skill 2 Intermediate
Diameter
N/A
Dimensions
1190mm x 830mm
Ground support equipment
Not included - Rocket only
Length
N/A
Maximum suggested motor
D9-P
Minimum suggested motor
C2-P
Motor mount
18mm
MPN
K4201
Recovery
n/a
Weight
190g
Type
Model rocket kit - Intermediate
Ignition type
Electric Igniters Not Included
