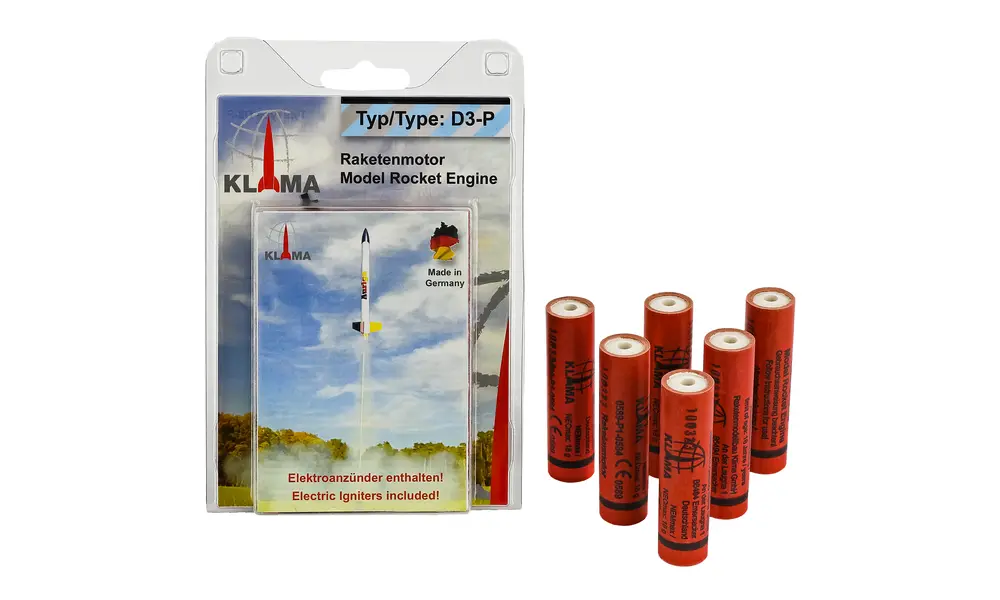

D3-P Six Pack 18mm Klima model rocket motors (Plugged) engine

K0449
£32.99 £27.49
Out of stock
120 days
Price in points: 2749 points
Earn reward points: 137 points
Add to Wishlist Compare

Order before 10am for next day delivery
Regular shipping from £4.99 - £8.49
Earn 5%* in reward points on your order
Find out more on our rewards page
Live stock in our warehouse
All stock is ready to ship straight away
120-day return period
Peace of mind with a long return window
These 18mm motors from Klima can be used in rockets, gliders and cars with 18mm motor mounts.
Klima 18mm motors can be interchangeable with many Estes models too should you want to benefit from the added value of the 6-pack over 3-packs.
Klima motors also come with really easy to use electric igniters that have long leads, and seem to work incredibly reliably. You can fire these igniters / motors from Klima, Estes or probably almost any other launch controller too.

All Klima motors are fully CE and ADR compliant so as long as you're over 18 you can buy these with no license required. (Subject to not storing more than 5Kg of total propellent weight, further information is available here). They must be sent with a courier option at checkout, and can't be sent in the Royal Mail.

Ideal for rocket cars, gliders or model rockets.
This motor is available for designs in RockSim OpenRocket & SpaceCAD software.

Other things you might want while buying motors

You may want to grab some extra consumables or spares while you're shopping for motors. The Klima natural recovery wadding is a great choice as it's biodegradable and lasts ages. We also sell Procell intense batteries which can supply lots of current to fire your rockets with ease.

What do the numbers and letters mean?

You need to split them up to understand what your motor name means.

First: Impulse (Ns)
The first part (the letter) represents the total impulse of the motor. Every letter you go up doubles the total impulse.
For example a B motor is twice the impulse of an A motor. As this is exponential a F motor would be 32 times the power of an A motor.
D motors like this one have an impulse in the range of 10 to 20 Ns (Newton seconds).

Second: Average thrust (N)
The second number or numbers up to the hyphen are the average thrust of the motor in Newtons.
So this D3 motor provides an average thrust of 3 Newtons.

Third: Delay (seconds)
The final part after the hyphen is the delay before the ejection charge goes off. This is where the motor will let out some hot gas to push your parachute out of your rocket for example.
If this last section is a P this means the motor is Plugged and has no ejection charge.
If it's 0 like this motor, there is no delay and the ejection fires as soon as the motor has burnt.
Any other number is the time in seconds from when the motor finishes burning to when the ejection delay will go off.
If there is a T on the end of a motor this mean it's classed as a tiny motor and usually suggests it's 13mm diameter and is not relevant to the delay.

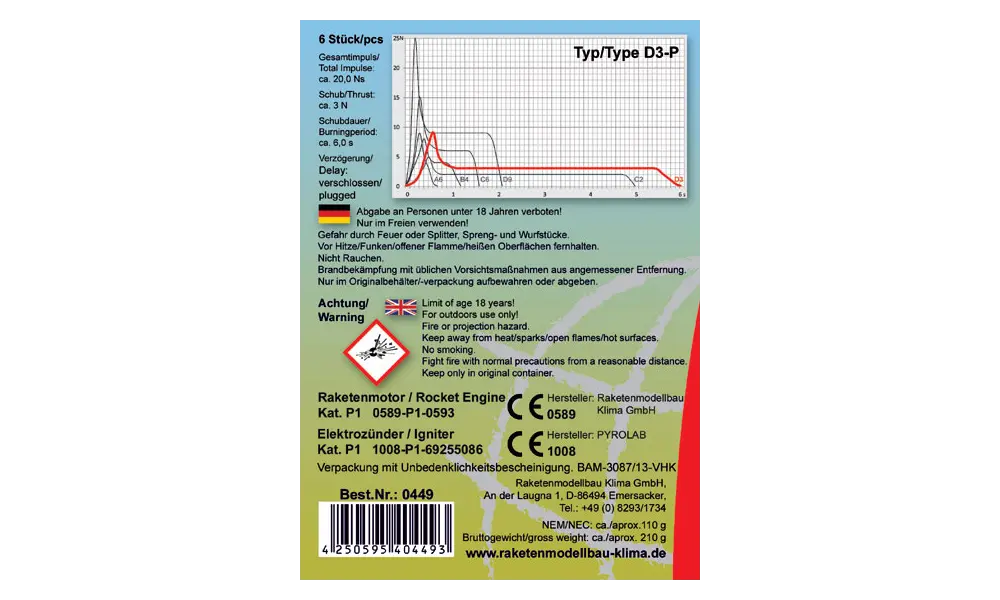

Graph of the motors thrust

You can view the thrustcurve.org page for this motor here.

Brand
Klima
Condition
new
Hazard class
1.4S
Motor/Reload total weight (g)
27.7g
MPN
K0449
Sensors: Accelerometer
No
Sensors: Gyroscope
No
Sensors: Magnetometer
No
Sensors: Pressure
No
Sensors: Temperature
No
UN Classification
UN 0432
Motor diameter (mm)
18mm
Motor impulse letter
D
Average thrust (N)
3N
Burn time (seconds)
6s
Delay (seconds)
P - Plugged
Total Impulse (Ns)
20 Ns
Motor Length (mm)
70mm
Quantity in pack
6
Propellant weight (grams)
17.2g
Type
Single use motor
Ignition type
Electric igniters included
