This kit contains a range of parts that you can use to produce a rocket for the UKROC 2025 competition.
To find out more about the competition, the aim and to register you can visit the UKROC website here.
You may still need the odd other bit, tools and consumables for your build, and this does not include a egg holder / protector which you will still need to produce or buy. We also sell protectors in our store.
This kit lets you build for either 3x 18mm motors to run Klima D9 motors, or 1x 29mm motor to run on the TSP F35 motors.

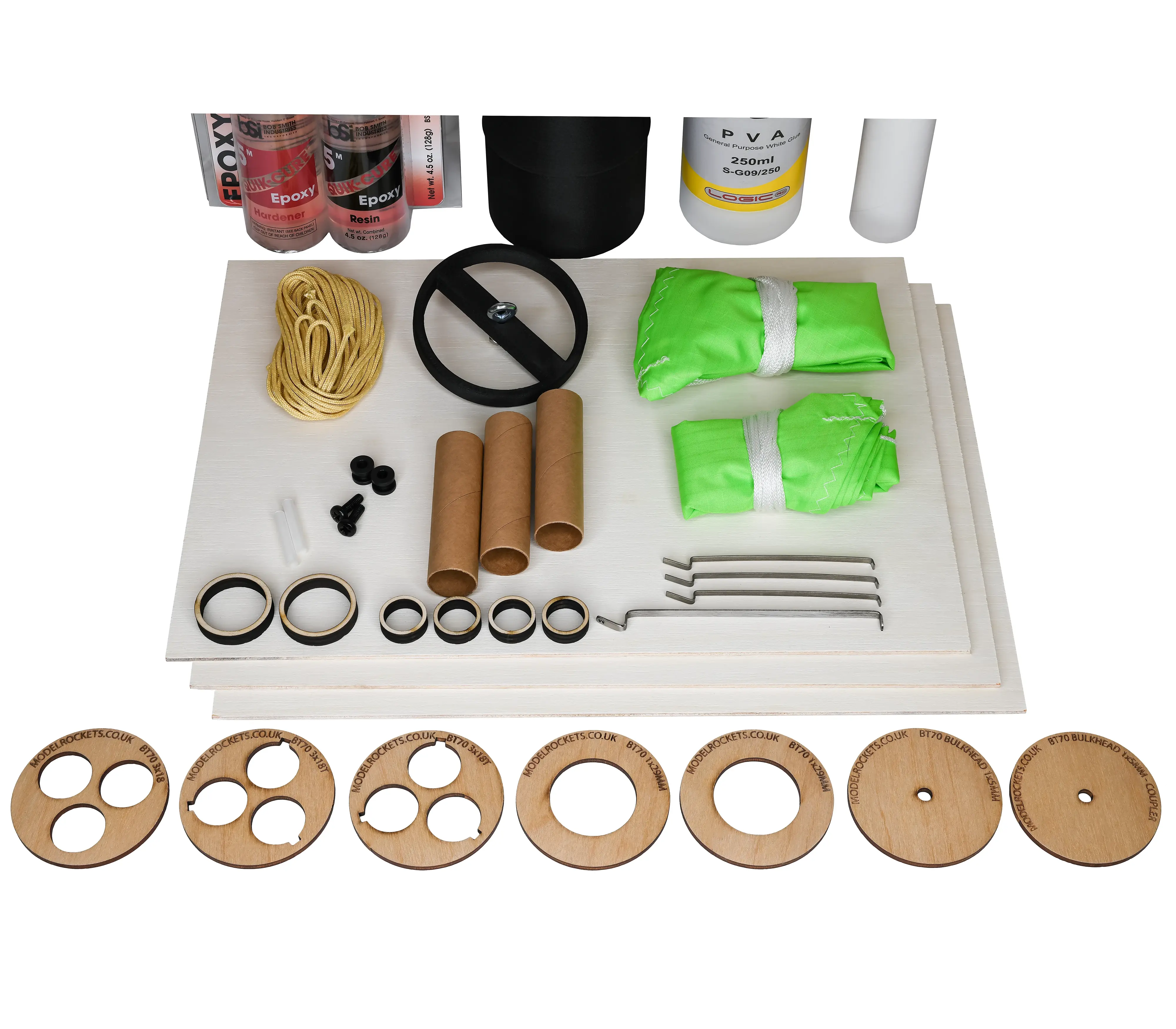

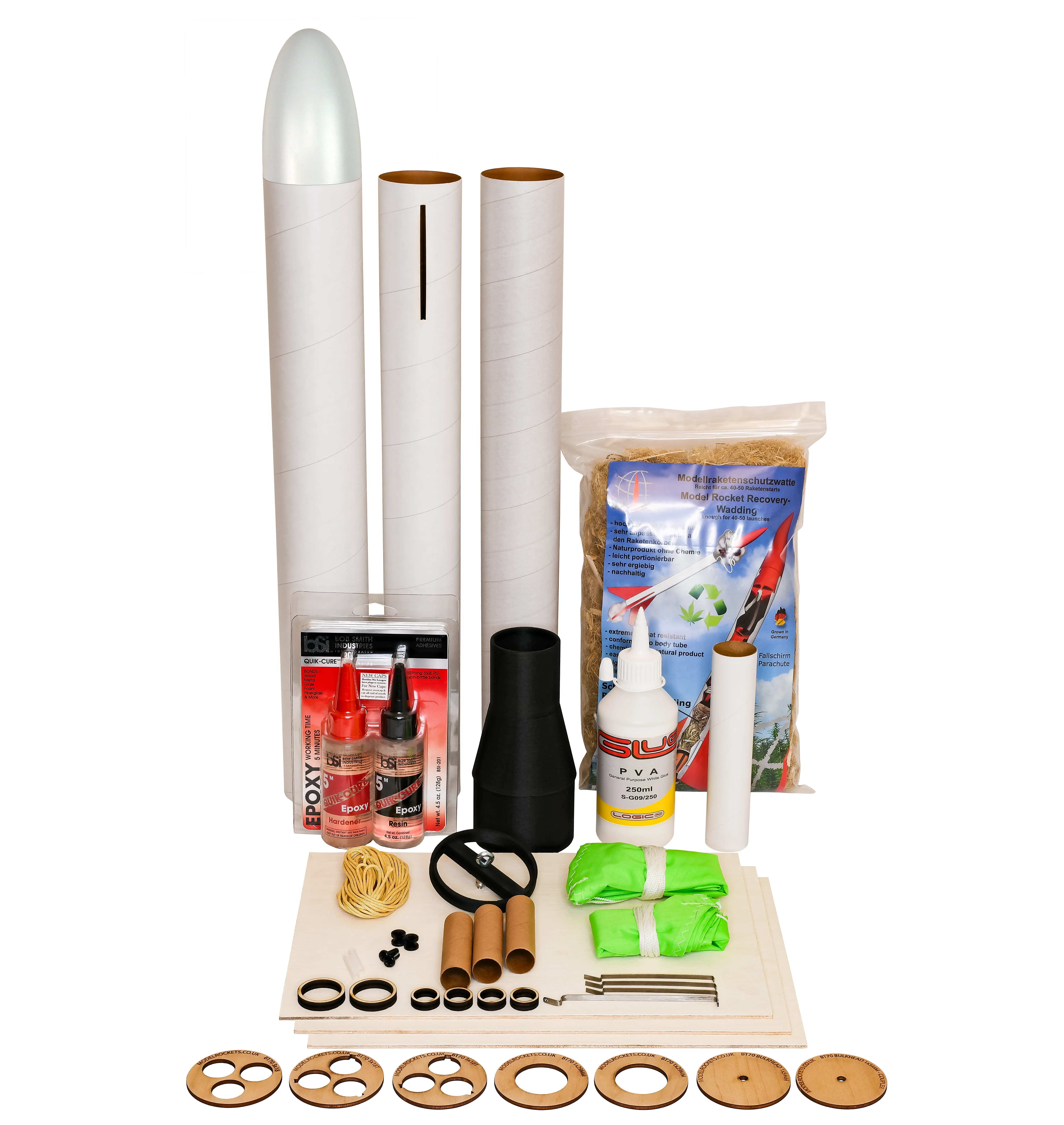

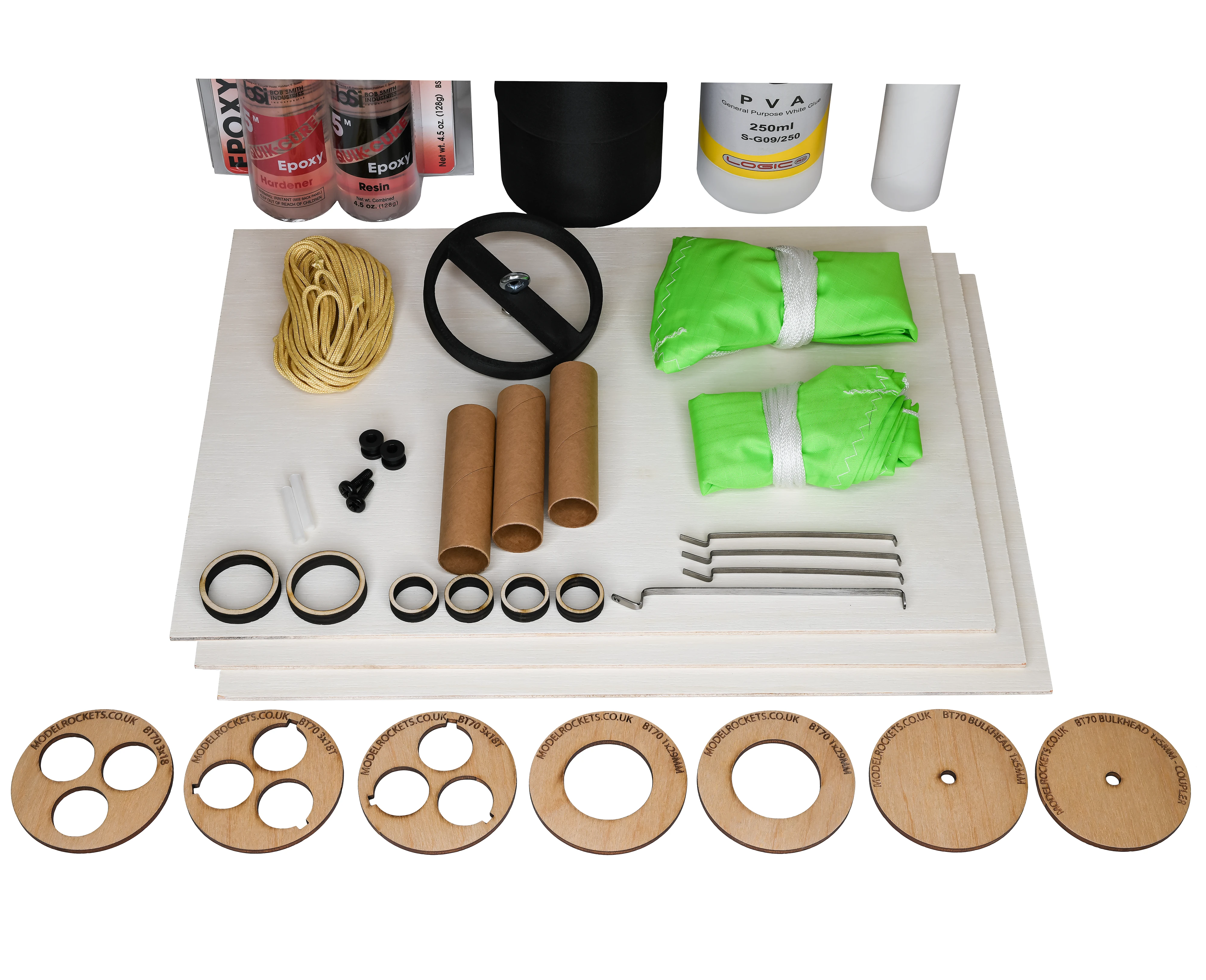

Contents of the kit
- 1x BT-70 airframe with 3x pre-cut slots (457mm length)
- 1x BT-70 airframe (457mm length)
- 1x BT-80 airframe (457mm length)
- 1x 66mm foam nose cone BT80
- 1x BT70 - BT80 transition (carbon reinforced nylon)
- 3x A4 size sheets of 2mm plywood (making fins)

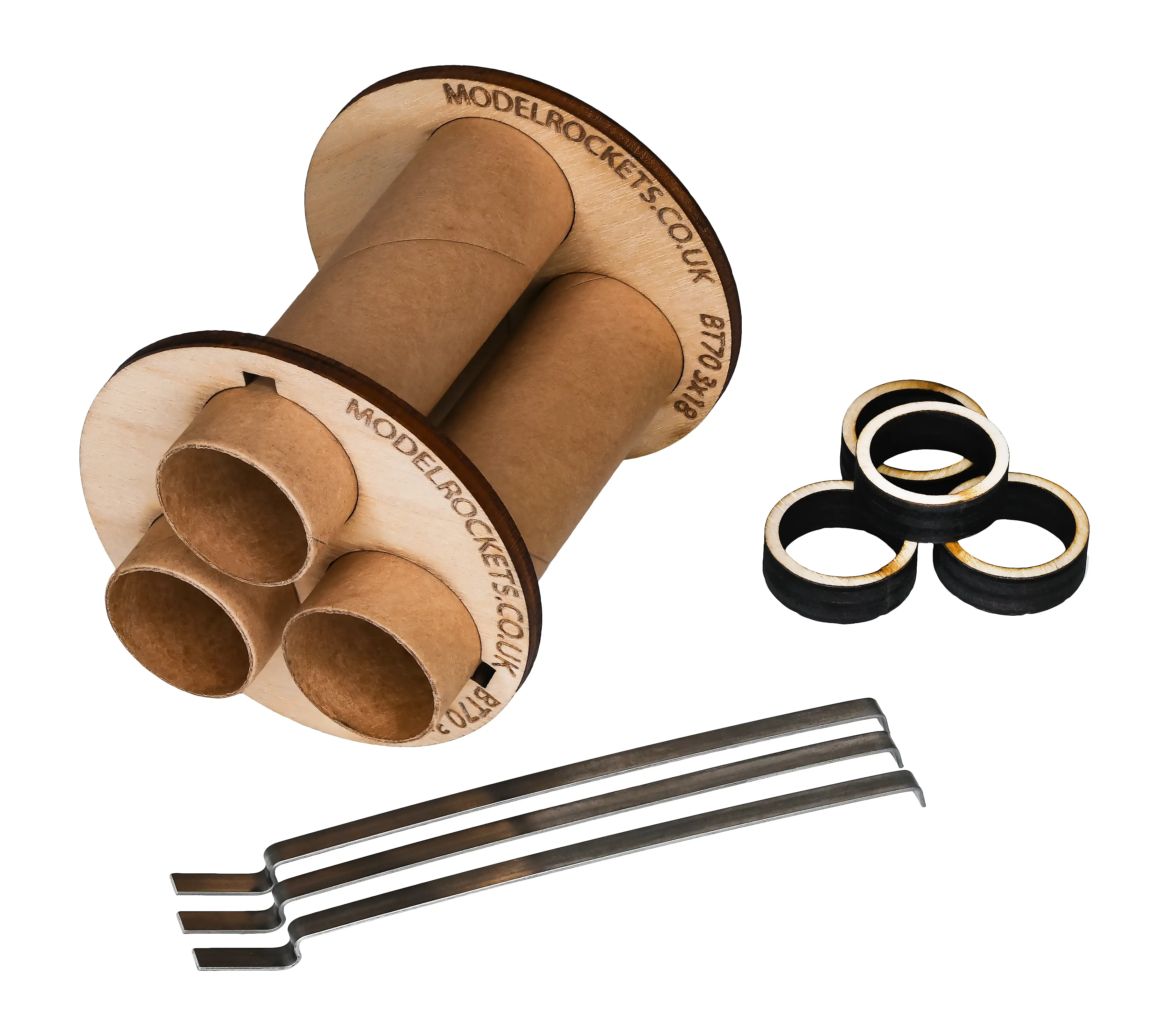

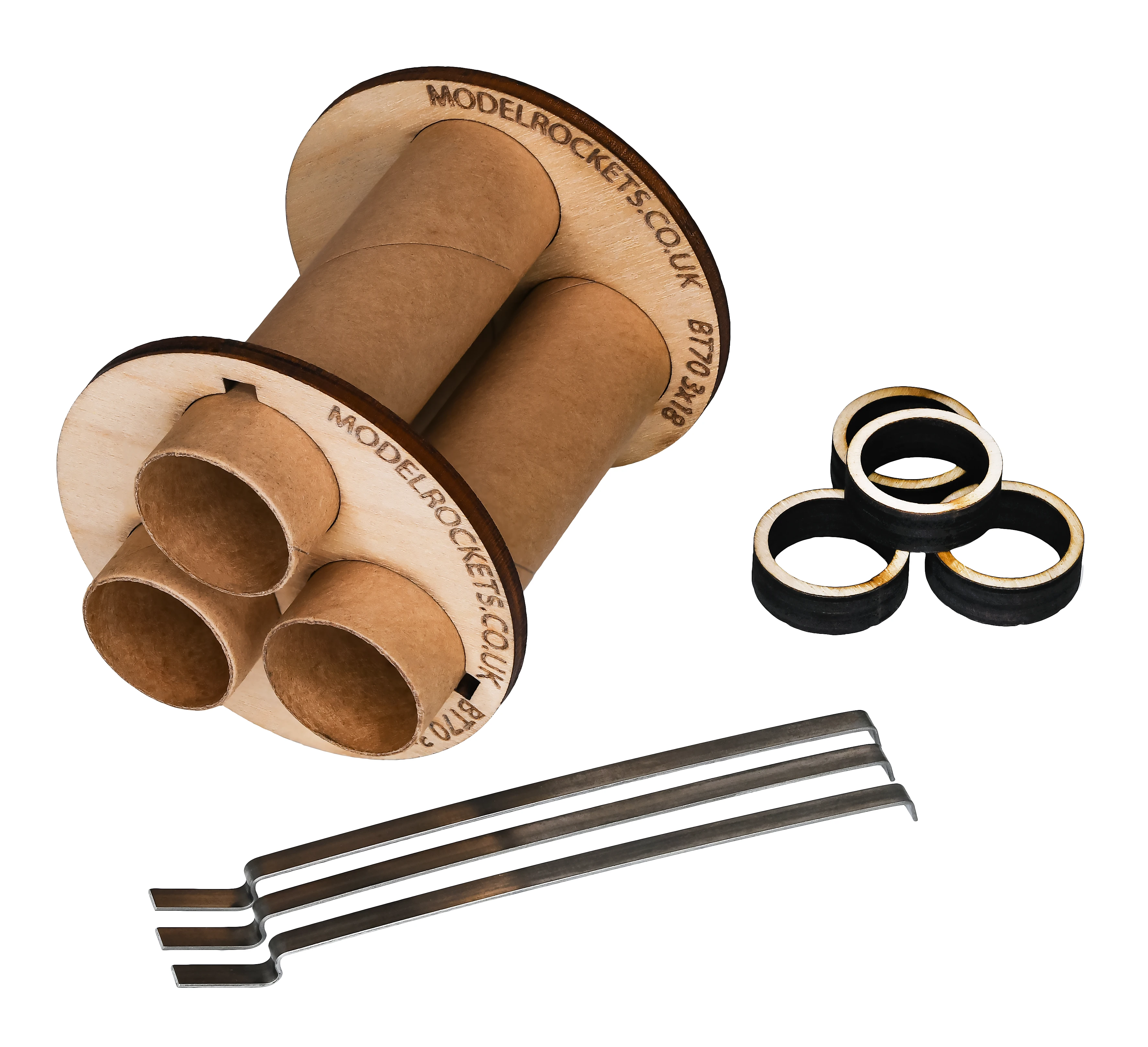

- 3x 18mm BT70 motor mount tubes

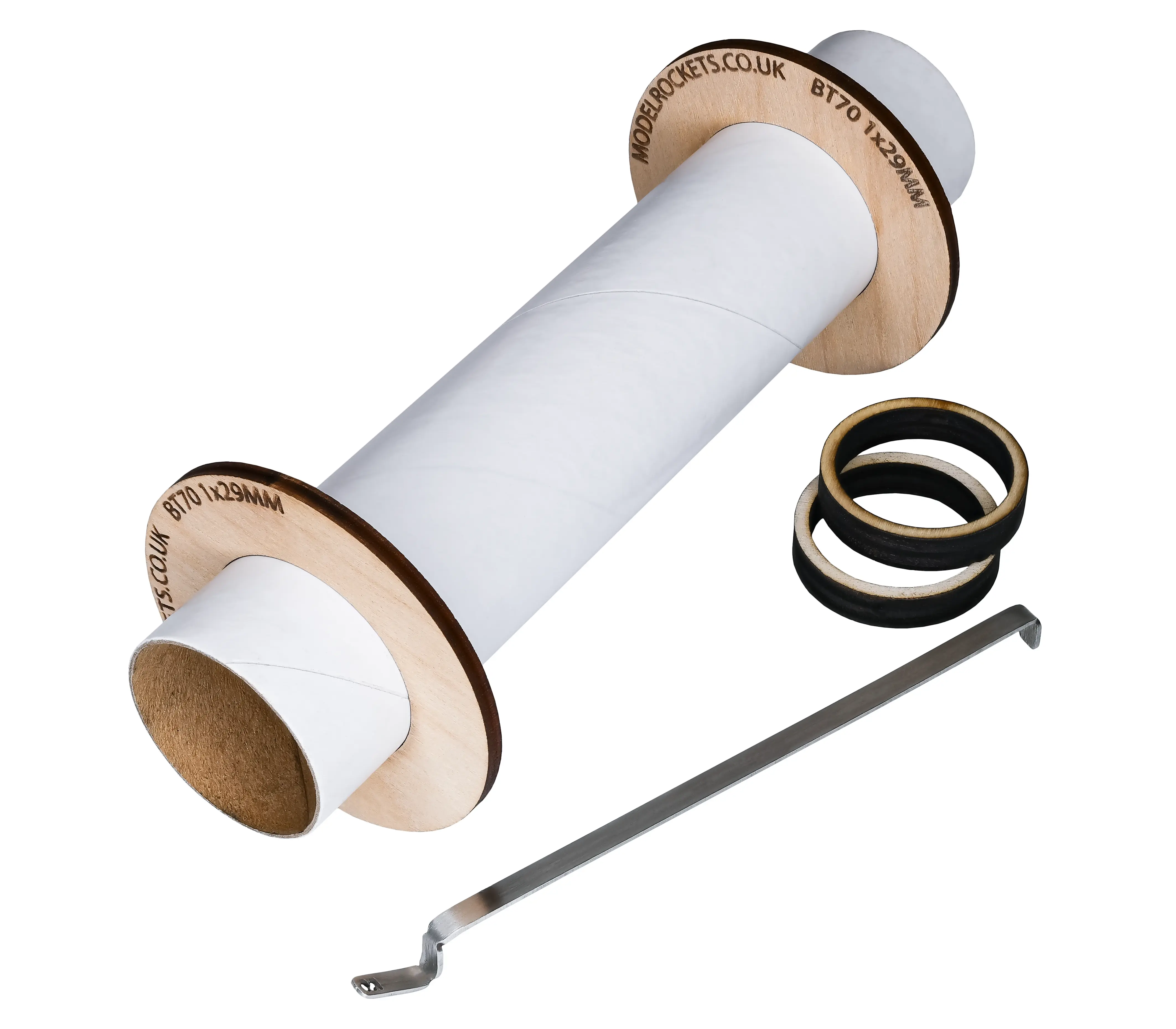

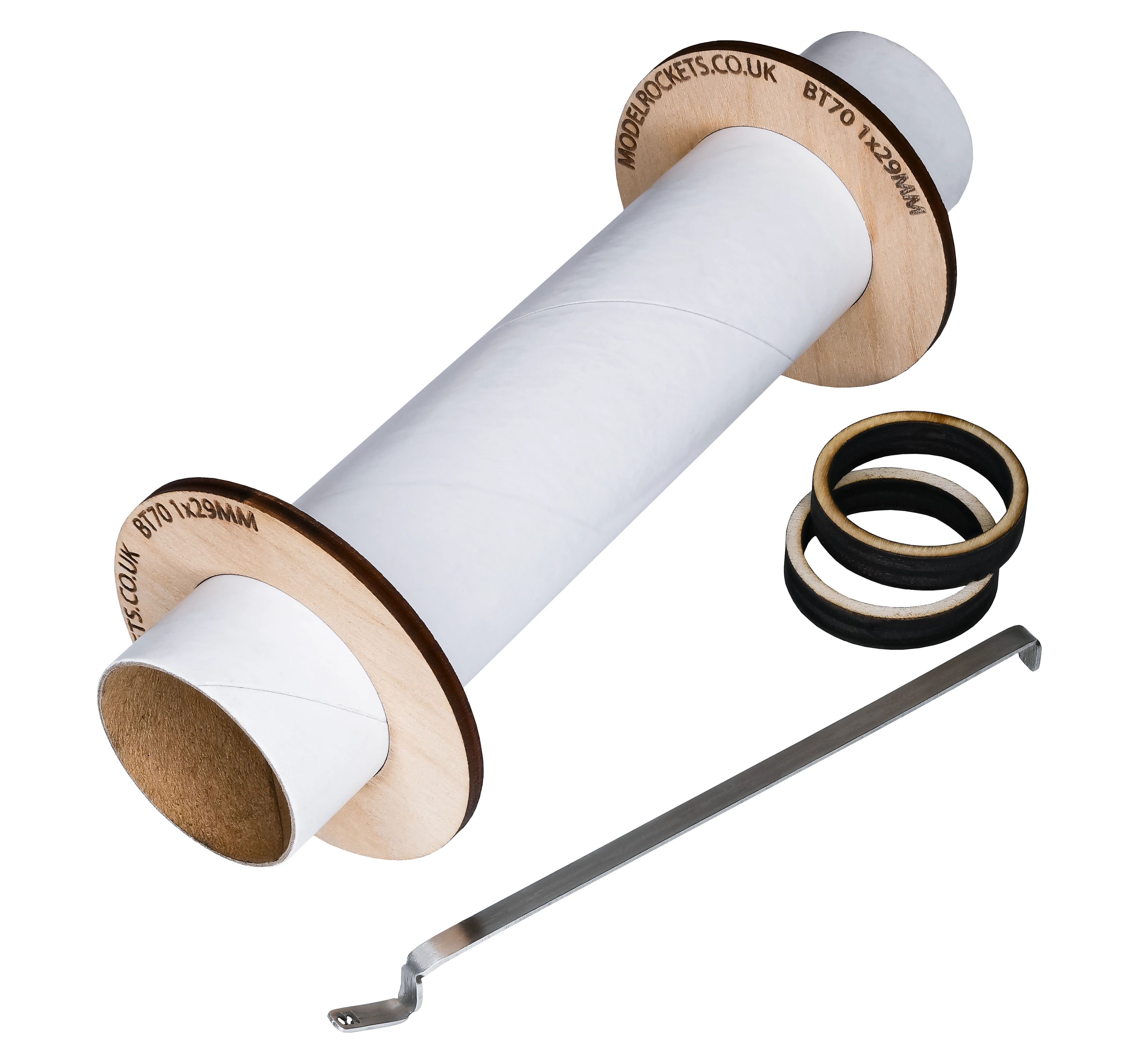

- 1x 29mm x 150mm motor mount tube
- 3x 70mm motor retention hooks (Klima D9 18mm motors)
- 1x 95mm motor retention hooks (TSP F35 29mm motors)
- 1x 24" Neon green topflight parachute
- 1x 18" Neon green topflight parachute
- 1x BT70 glue in anchor for shock cord (carbon reinforced nylon)
- 1x 5m x 1.6mm (135Kg) kevlar shock cord
- 2x 6mm launch lugs
- 2x Delrin 6mm rail buttons with bolts
- 2x 29mm plywood thrust rings
- 4x 18mm plywood thrust rings
- 2x Centering ring - Tripple 18mm motors with slots for engine hooks
- 1x Centering ring - Tripple 18mm motors
- 2x Centering ring - Single 29mm motor
- 1x BT70 bulkhead with centre hole
- 1x BT70 coupler fit bulkhead with centre hole
- 1x Logic 250ml PVA / wood glue
- 1x 5-minute BSI expoxy 128g
- 1x Large pack of Klima natural wadding
What motors should you choose?
We've attached the approved motor list PDF to this page for you to browse. While all rocket builds will vary as a general rule of thumb you would be looking for around 60 Ns of total impulse for your rocket.
This means you could use 3x Klima D9 motors in our 3x 18mm motor mount, or you could use 3x Estes D12 motors although these are larger than the Klima's so you may find it hard to fit them in for this years project.
TSP rocket motors are included on the approved list this year which means you can run on a single TSP F35 motor, which means no reliability worries using a cluster. We also sell bulk packs of the D9 motors, using 3 motors a time you will get 10 launches from a bulk pack.
The choice of course is up to you! You can check out all the motor options we think are good options in our UKROC motors section.
What launch pad should we use?
The best choice would be to use a 6mm slot rail launch pad. We have one in development that we will list soon and update this section once it's ready. These can be quite expensive though compared to a rod launch system. So for practice if your rocket can cope with it we suggest a 6mm rod launch pad.
Here are some good options and ideas.
- 6mm x 2000mm launch rod
- Klima launch pad & launch controller bundle (can take a 6mm rod)
- Estes pro series II launch pad (5ft launch rod)
- Estes PSII Launch controller
- 11 meter launch controller extension lead
How do we launch motor clusters?
The best way is to use tape match and lightning sticks from Klima. There is a guide included on the packs to show you how to set everything up.
It offers a reliable way to set off all 3 of your motors at the same time from a single igniter.
Can we swap the parachutes for a different colour?
Yes! If we have stock you can choose from Neon Pink, Neon Orange or the standard Neon Green. Should you want a different parachute from our website rather than just the colour then you would need to order this separately I'm afraid.
Once you've checked stock, just add your requested colour change to the order notes on checkout.
You can check the stock of 18" and 24" Top Flight parachutes here, but please note you can only swap to a "STANDARD" parachute with this kit.
What is the black ring with an eye bolt for?
This is a 3D printed shock cord mount. You can glue it into your lower BT-70 tube to attach your shock cord. We suggest using epoxy for this rather than the PVA glue.
It's produced from Carbon fiber reinforced Nylon and can cope with pretty high temperatures and strength. If you want to strengthen it further then add a piece of coupler tube above the anchor point.
Why have you not included a coupler for the two pieces of BT-70 tube?
We don't expect your rocket would need to be that large! We've included one piece of BT-70 with 3 slots pre-cut which is quite handy if you're going with a 3-fin design. The other tube is for designs that don't suit the pre-cut 3-slot tube.
If you do want a BT-70 or BT-80 coupler then we do stock these, just pop along with this link to grab one.
What else might we need?
- An altimeter, The Estes and Jolly logic altimeters are great choices and approved by UKROC.
- A launch pad and launch controller for testing your rocket.
- Rocket motors as detailed above for your test launches and launches on the day. If you're clustering don't forget you may want to grab Tape match and Lightning sticks too.
- An egg protector. We've not included this as many teams make their own, but we do also offer some options for sale.
- You may want to put together a field box of handy tools, spares (igniters / rail buttons / some glue / couplers / A bit of body tube / A spare nose cone / etc)
- Eggs.... (hopefully not too many!)
