Klima EXA Cluster master package rocket kit

Stock: 3 item(s)
Free UK shipping when you spend over £150
Free UK shipping over £150
Regular shipping from £4.49 - £7.99
Full shipping terms
Other items or accessories you may like
  • Similar skill rockets
  • More by this manufacturer
  • Pads & controllers
  • Wadding & igniters
  • Motor adapters


EXA Cluster Master - the package for the ambitious and demanding rocket pilot!

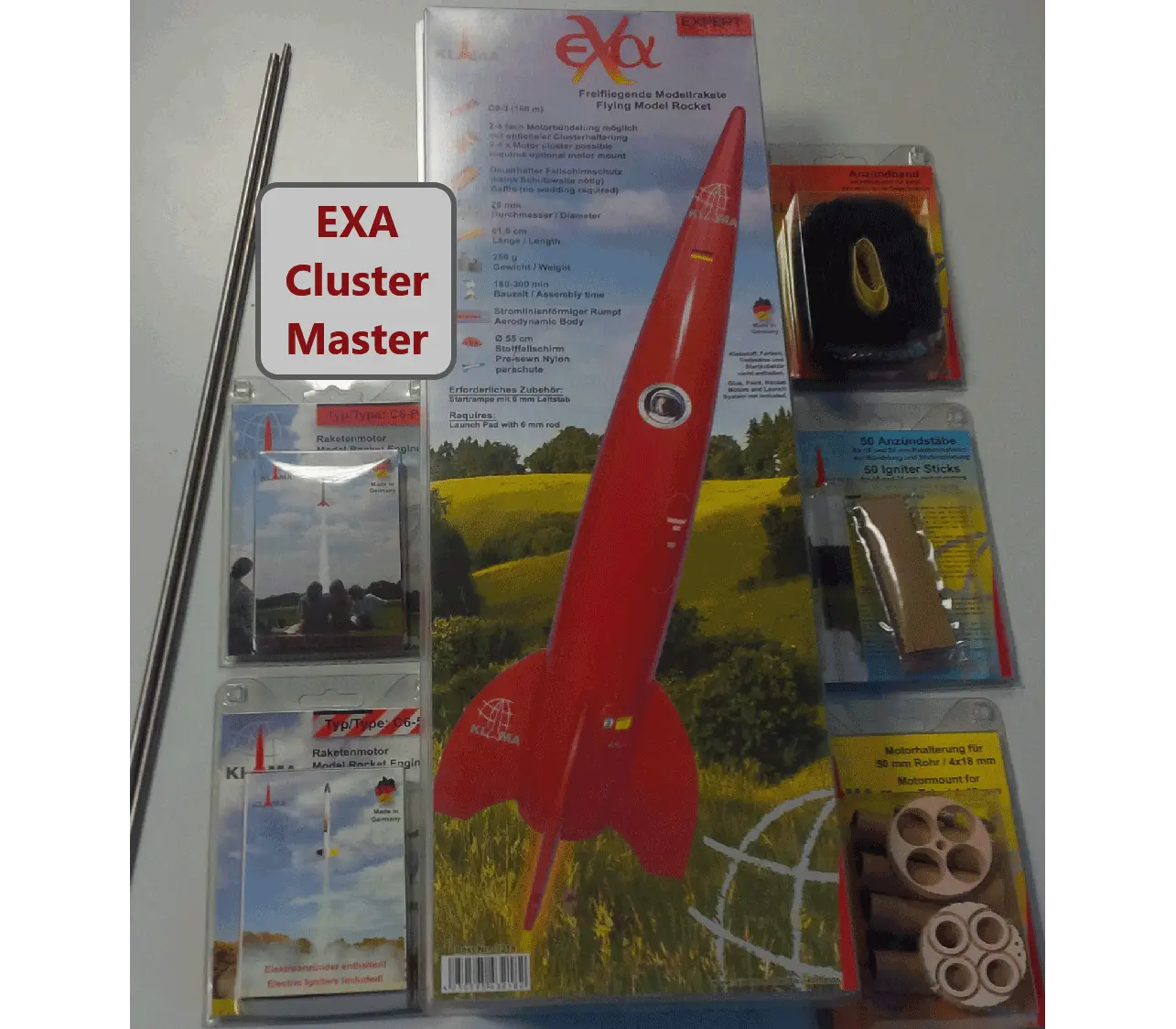

This bundle contains everything you need to build the EXA in a 4-cluster configuration:

  • EXA kit
  • 4 engine mount
  • Ignition sticks
  • Tape match
  • C6-5 with electric igniter
  • C6-P
  • 6mm guide rod

Dimensions: Length: 610 mmDiameter: 78 mmWeight: 250g

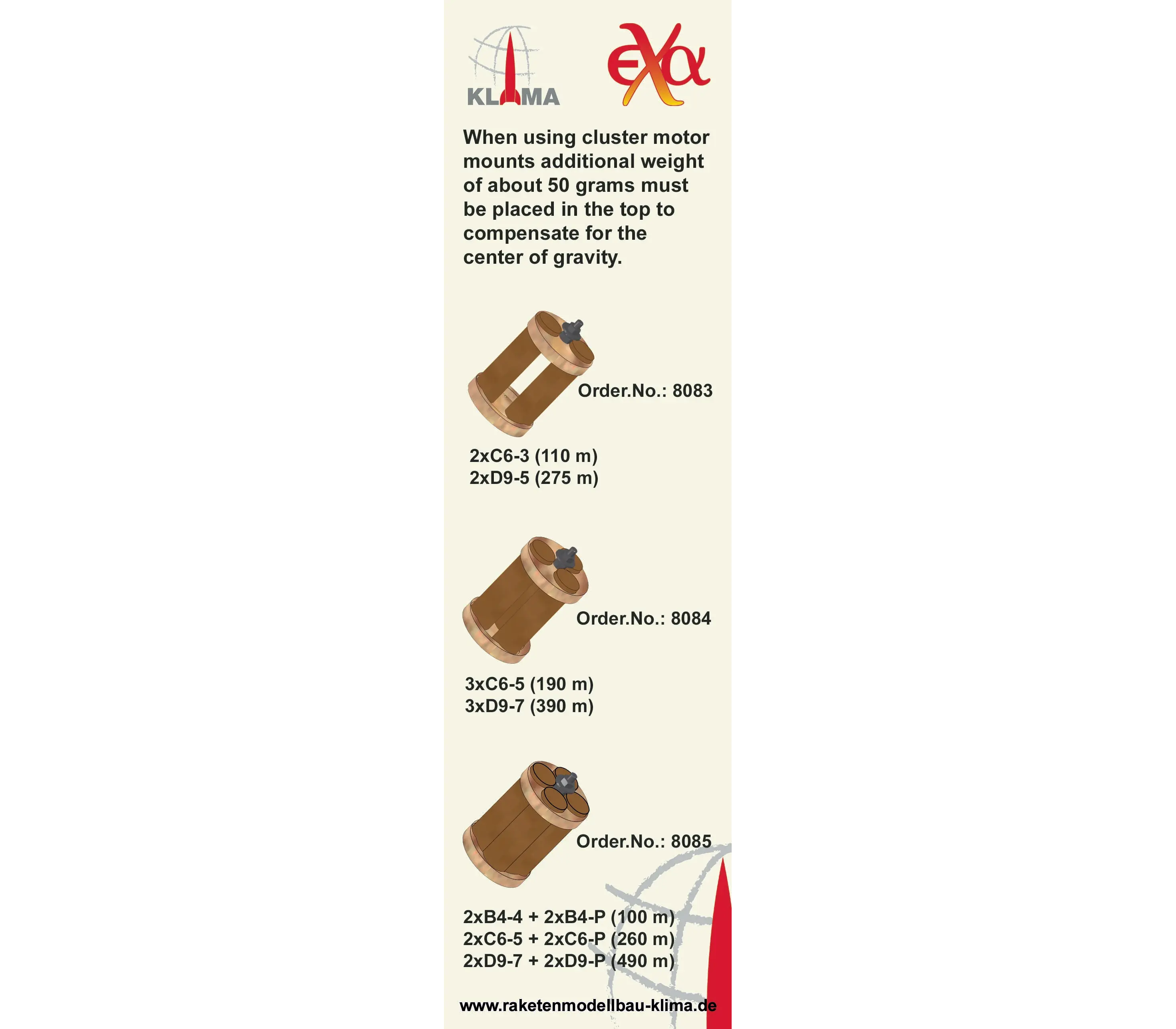

Engine combinations:

2x B4-4 + 2x B4-P (100 m)
2x C6-5 + 2x C6-P (260 m)
2x D9-7 + 2x D9-P (490 m)

This kit, originally released 10 years ago, is coming back after a long break!
Almost identical on the outside, this model has been completely redesigned on the inside.

The main changes are:

  • Continuous 50mm body tube inside (= more space)
  • Baffle / permanent parachute protection
  • High quality 55mm fabric parachute
  • Stronger shock bands
  • even more precise CNC-manufactured frames and fin inlays
  • 3D printed guide parts for 6mm guide rods, conforming to the outer shell
  • Completely new, colorfully illustrated and multilingual building instructions
  • Multicolored, wafer-thin decorative sticker sheet
  • Can optionally also be built as a cluster
    (4 motor mounts are already included in this bundle))

The outer shell still consists of deep-drawn plastic parts,
which, in conjunction with the frames and inner tube, create a stable fuselage.
The same applies to the profiled fins, whose construction aids
ensure an exact fit during assembly.

EXA comes from Greek and continues a tradition of our experimental rockets,
Depending on the model size, the appropriate Greek prefix is chosen as the name.
Pico, for example, was the name of a very small rocket; the Tera is already 2.08 m long and Exa means above everything and is a prefix for a number with 18 zeros.

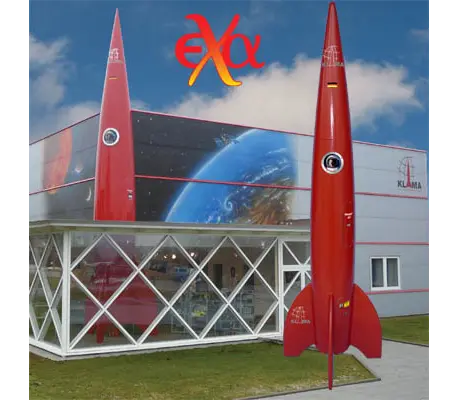

The 10 meter high model of this exceptionally elegant rocket has been decorating since 2008 the company building of the rocket model construction Klima GmbH.
The kit contains all the parts required to build the model in pre-fabricated and cut-out form.
Adhesives are excluded. To glue the deep-drawn plastic parts, please use solvent-based
Free glue such as 2-component epoxy glue.
The Beli-Zell glue mentioned in the construction instructions is no longer manufactured and is no longer included.

Bundles with this product

Product specifications

Altitude on max suggested motor
Construction skill
Skill 3 Advanced
78mm x 610mm
Maximum suggested motor
4x D9
Minimum suggested motor
4x B4
Motor mount
4x 18mm
Product options
Exa cluster package
Quantity in pack
cluster rocket
